RW-F16

  • High Power Output: Delivers up to 8 kW with the ability to connect up to 32 units, scalable to 512 kWh
  • Long-lasting Battery Life: Utilizes LiFePO4 technology with over 6000 cycles, ensuring durability and longevity
  • Built-in Circuit Protection: Features a built-in circuit breaker for safe charging (160A) and discharging (160A)
  • Wide Operating Range: Capable of charging from 0℃ to 55℃ and discharging from -20℃ to 55℃
  • Remote Management: Supports remote monitoring and firmware upgrades via Deye inverter
  • Flexible Installation: Suitable for both wall-mounted and floor-mounted setups
  • Efficient Energy Use: Achieves 90% round-trip efficiency with a nominal usable energy of 14.4 kWh
  • Robust Design: IP20 rating, designed for indoor use with high humidity tolerance (up to 95%)
Request details
Overview
Additional Info

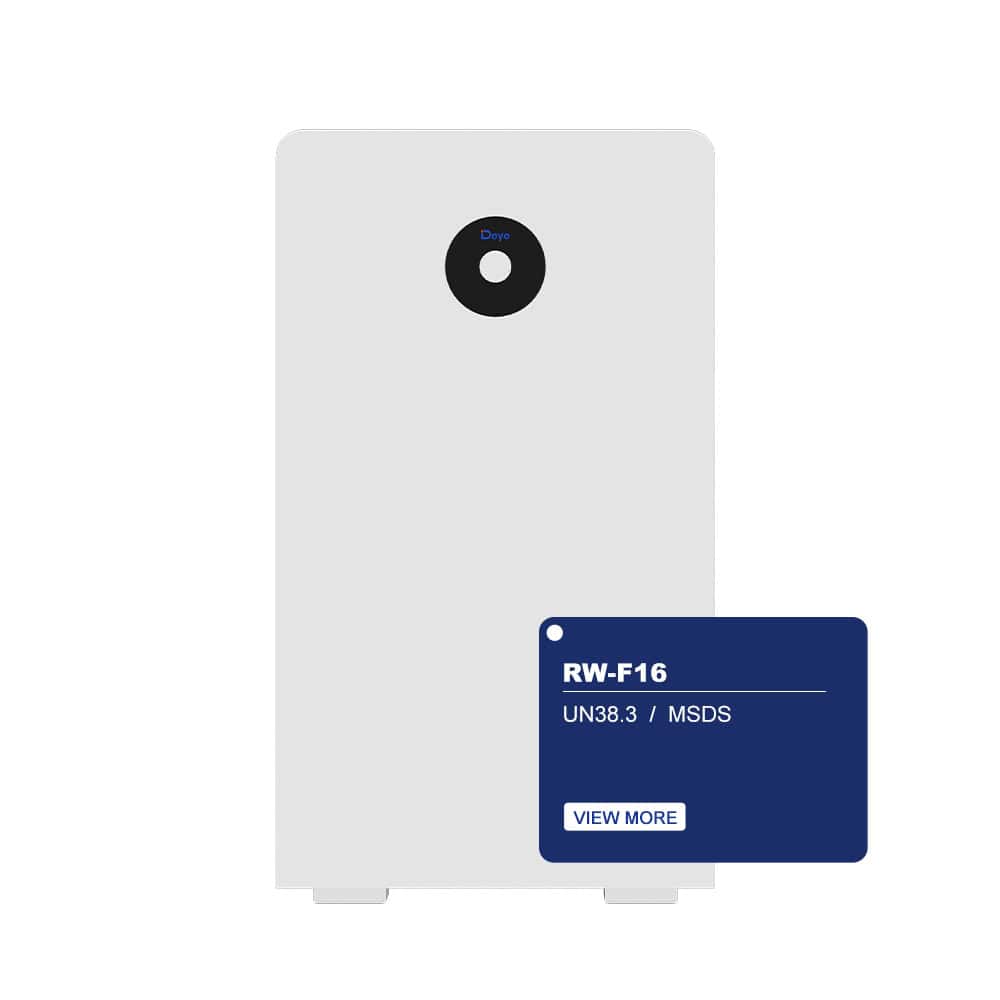

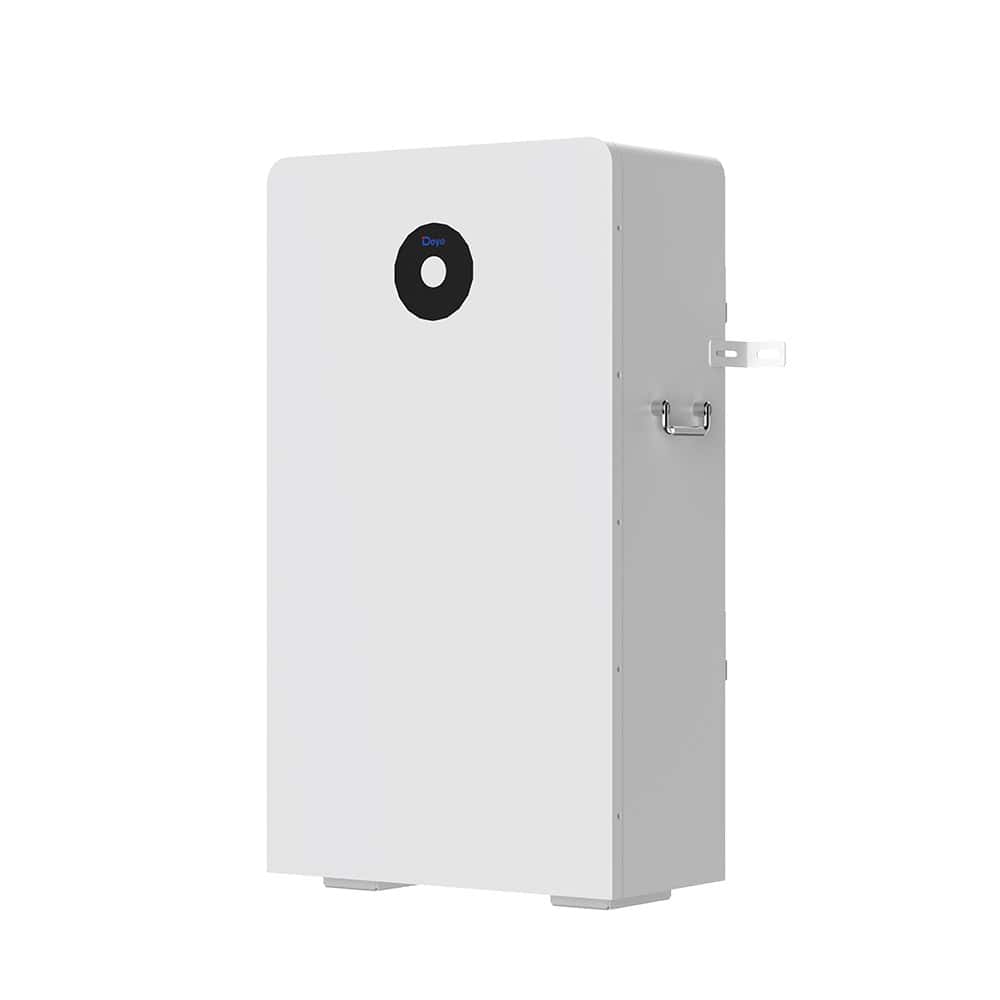

The RW-F16 is a cutting-edge battery for residential energy storage, designed to deliver reliable and efficient power management for homes.

Specification Detail
Model RW – F16
Battery Chemistry LiFePO₄
Capacity 314 Ah
Nominal Voltage 51.2 V
Usable Energy 14.4 kWh (90% Depth of Discharge)
Charge/Discharge Current – Maximum Continuous 160 A
Charge/Discharge Current – Peak 300 A (10 seconds)
Dimensions 480 x 830 x 235 mm
Weight Approximately 122 kg
IP Rating IP20 (suitable for indoor use)
Operating Temperature Range – Charge 0°C to 55°C
Operating Temperature Range – Discharge -20°C to 55°C
Relative Humidity 95% (maximum)
Installation Wall – mounted or floor – mounted
Warranty Period 5 – year warranty (10 years extendable)
Certification UN38.3, MSDS

Key Features:

  • Uncompromised Safety: Utilizes the safest LiFePO₄ battery chemistry and features an Intelligent BMS, ensuring safe and stable operation.
  • Powerful Output & Ample Energy: Offers a maximum 8kW output power and 14.4kWh usable energy (with 90% depth of discharge), meeting diverse home energy demands.
  • External Power Backup: Enables external power activation to prevent battery suspension, guaranteeing continuous energy supply.
  • Flexible Use & Scalability: Comes with built-in 10A constant current limited charging, compatible with numerous inverter brands. Allows up to 32 units in parallel for easy expansion.
  • Hassle-free Maintenance: Supports over-discharge direct recharge, making upkeep simple.
With dimensions of 480 x 830 x 235 mm, weighing around 122 kg, and an IP20 rating for indoor use, the RW-F16 also comes with a 5-year warranty (extendable to 10 years) and holds certifications like UN38.3 and MSDS, making it a dependable choice for home energy storage.
