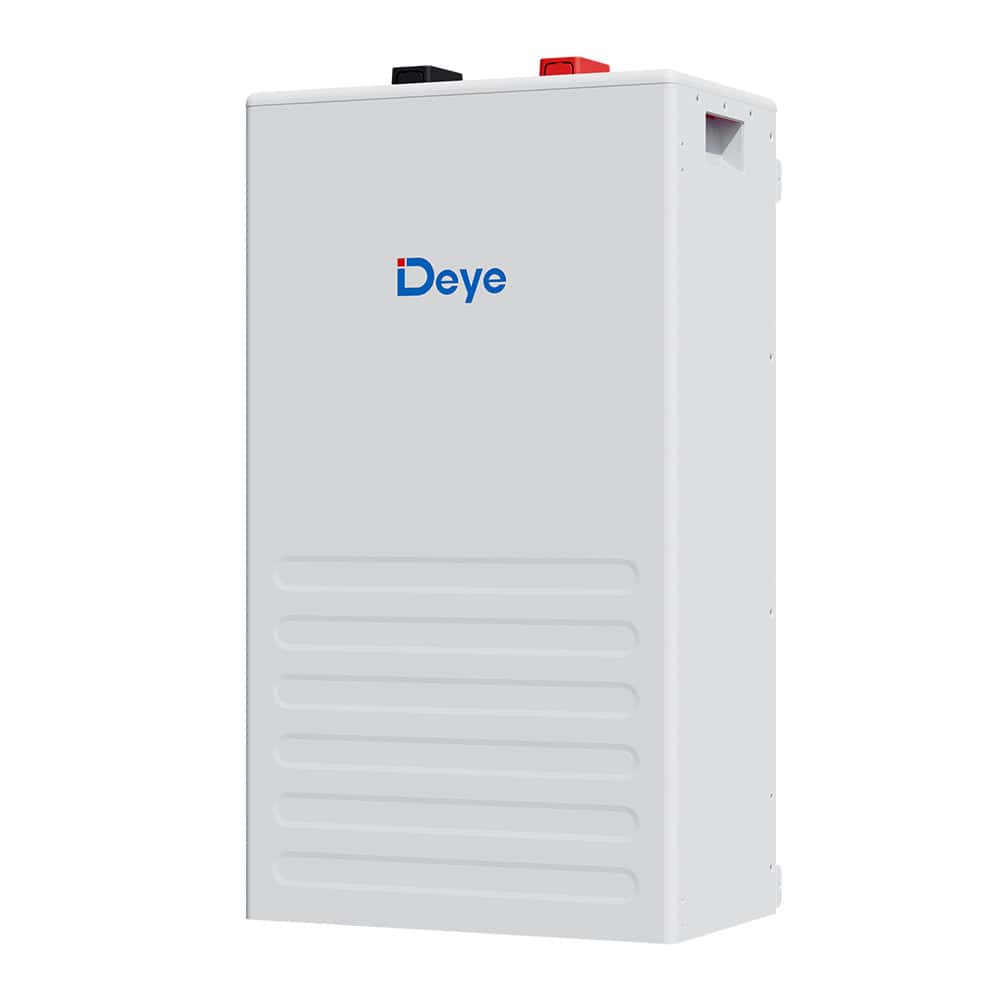

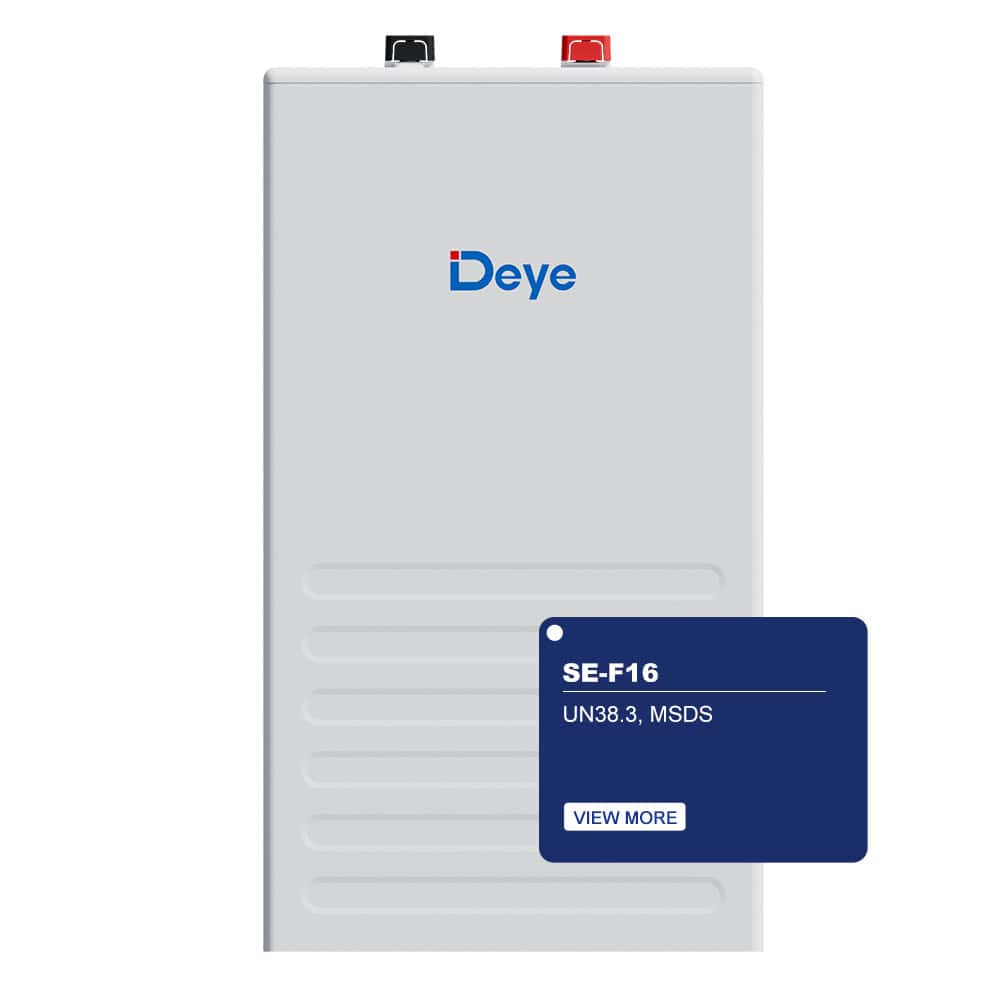

The SE – F16 is a standout energy storage solution ideal for both residential and commercial use.
| Parameter |
Value |
| Model |
SE-F16 |
| Battery Chemistry |
LiFePO₄ |
| Nominal Capacity |
314 Ah |
| Nominal Energy |
16 kWh |
| Nominal Voltage |
51.2 V |
| Operating Voltage |
44.8 V – 57.6 V |
| Max. Cont. Charge Current |
160 A |
| Max. Cont. Discharge Current |
230 A |
| Peak Discharge Current |
280 A (10 sec) |
| Dimensions (W×H×D) |
400 × 708 × 233 mm (Without hanging board) |
| Weight Approximate |
109 kg |
| Recommended DoD |
90% |
| Cycle Life |
>6000 cycles (25°C±2°C, 70%EOL) |
| IP Rating |
IP21 |
| Operating Temperature |
Charge: 0~55°C / Discharge: -20°C~55°C |
| Communication |
CAN2.0, RS485, Bluetooth+APP |
| Scalability |
Max. 32 units in parallel |
| Warranty |
5 years / 10 years (extended) |
Key Advantages
- Comprehensive Protection: Equipped with an advanced Battery Management System (BMS) featuring an active fuse, it ensures safe and stable operation, safeguarding your energy storage investment.
- Superior Performance: Supports up to 1C charge and 1.2C discharge, enhancing energy utilization efficiency. Incorporating GaN MOSFETs, it achieves a 50% reduction in energy loss and boasts excellent high – temperature resistance, performing reliably even in tough conditions.
- Optimized Energy Density: The integrated PACK design cuts down line loss significantly, boosting energy density and allowing for more energy storage in a compact space.
- Flexible Expansion: You can parallel up to 32 units, easily meeting growing energy storage needs as your requirements change.
- Easy Maintenance: Offers auto – networking and dual monitoring modes—local monitoring for the battery and remote monitoring for the entire ESS, making management and upkeep a breeze.
- Reliable Durability: Operates flawlessly in temperatures ranging from – 20°C to 55°C with natural cooling, ensuring year – round dependability without the need for complex cooling systems.
