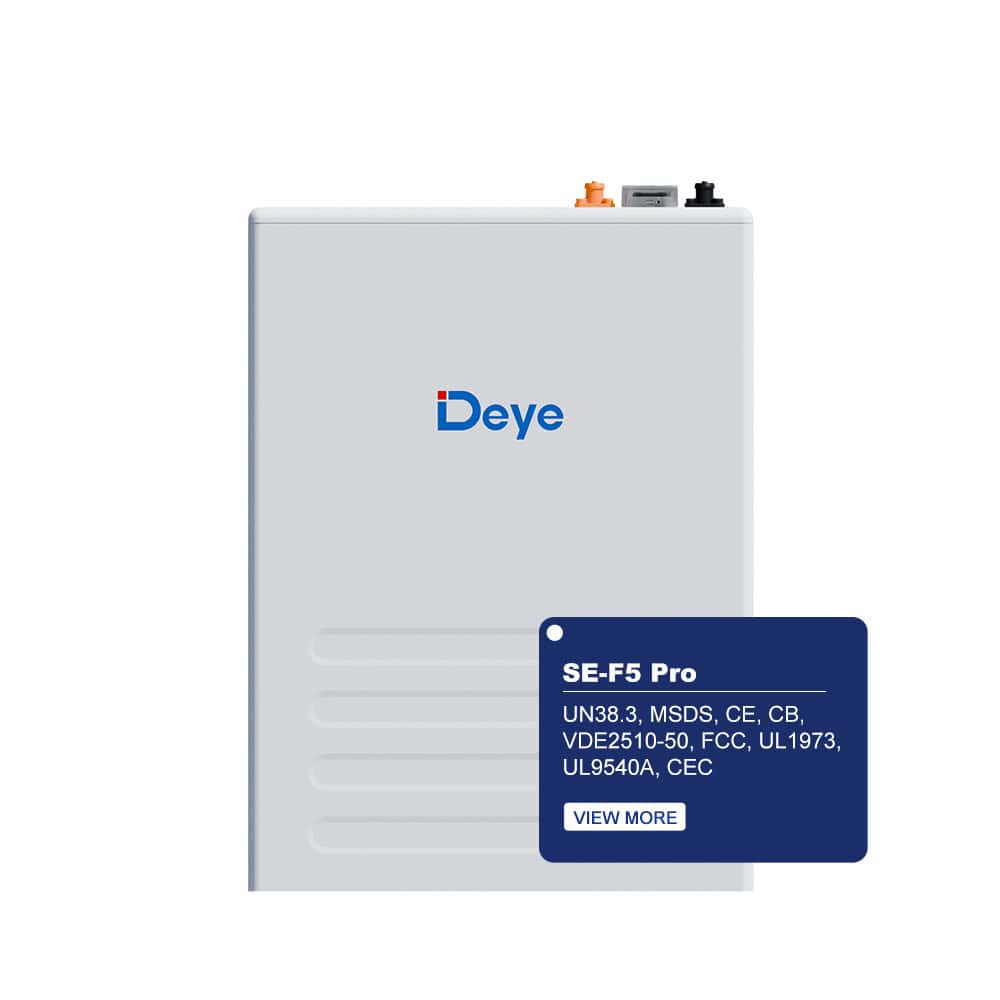

The SE-F5 Pro is a top-tier residential Energy Storage System (ESS) that transforms home energy management.
| Specification |
Details |
| Model |
SE-F5 Pro |
| Battery Chemistry |
LiFePO₄ |
| Nominal Voltage |
51.2 V |
| Operating Voltage |
44.8 V ~ 57.6 V |
| Capacity |
100 Ah |
| Nominal Energy |
5.12 kWh |
| Max. Continuous Charge/Discharge Current |
100 A |
| Peak Charge/Discharge Current |
150 A (for 120 seconds) |
| Recommended Depth of Discharge (DoD) |
90% |
| Dimensions (W×H×D) |
404 × 547 × 141 mm |
| Weight |
44 kg |
| IP Rating |
IP21 |
| Communication |
CAN2.0, RS485, Optional (WiFi + Bluetooth + APP) |
Key Features & Benefits:
- Comprehensive Protection: It comes with an advanced Battery Management System (BMS) and active fuse, guaranteeing safe operation.
- Ultra-efficient: Supports a maximum of 1C charge and 1C discharge, allowing for fast energy transfer.
- Flexible Expansion: Up to 32 units can be connected in parallel, easily catering to increasing energy demands.
- Easy Maintenance: Features auto-networking, with local monitoring for the battery and remote monitoring for the ESS, making upkeep simple.
- Optimized Energy Density: The integrated PACK design cuts down line loss and enhances energy density for improved storage efficiency.
- Reliable Durability: Operates stably in temperatures from -20°C to 55°C with natural cooling, ensuring long-term dependability.
With a 100 Ah capacity, 5.12 kWh nominal energy, and a 10-year warranty, the SE-F5 Pro, using LiFePO₄ battery chemistry, is a trustworthy option for efficient and secure home energy storage.
